Bag Conversion Line

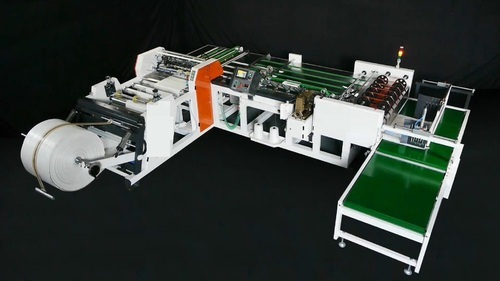

We have carved a niche amongst the leading firms in this domain and are involved offering a wide range of Fully Automatic Cutting And Stitching Machine for Woven Sack.The machine shall have fabric loading unit with pneumatic operation and necessary brake & side sliding.

Specifications :

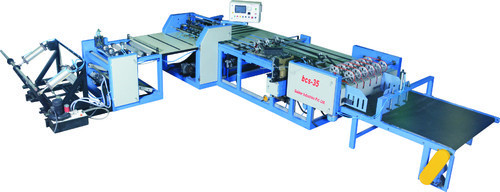

Automatic Woven Sack Cutting and Stitching Machine (BCS) also known as Bag Conversion Line

New Development Product Launch :
(Model No. BCS 40)

Woven Sack Bag Conversion Line is recognized for delivering optimum support in meeting the production demands of woven sacks. Available under different models with change in specifications and operational features, these woven bag making lines are equipped with two Servo motors to deliver consistent performance support. Further, these are also made available with options of 90⁰ Bag Transfer Gripper, operation interface using display screen and others.

Some of the operational specifications of these conversion lines include diameter of unwinding cloth of 1000mm (max), width of unwinding cloth of 16 to 32 inch (can be adjusted as per the requirements), cutting length of 19 to 50 inch (can be adjusted as per the requirements), production output of 32 to 40 bags per minute.

Apart from these, some of the other working specifications include sewing unit functioning on 4500 rpm 1 H.P., length accuracy maintained of within ± 1mm range, cutting knife used comprising superior grade alloy steel based cutter with tubular heater option. In the offered woven sack lines, we also offer the provision of adjusting the length of belts as well as of marking points as per the requirement.

We can also custom design these machines in different specifications as demanded by the customers.

Special Features :

Under the hard working force and technologically-advanced production facility, we are offering a premium quality array of Woven Sack Stitching Machine. Our offered product is highly acknowledged among clients for its remarkable features. We offer this product in customized options at competitive price.

Specifications :

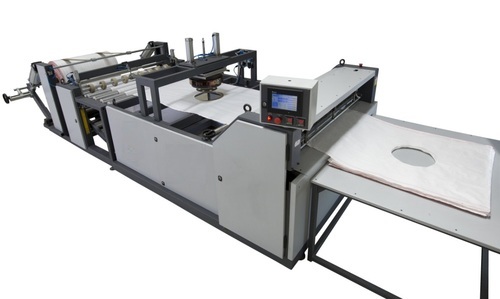

We are highly acknowledged organization engaged in presenting remarkable range of HDPE Fabric Cutting Machine.This machine adopts stepping motor control intercept fixed length.Our offered Cutting Machine is widely appreciated by our clients who are situated all round the nation.

Specifications :
